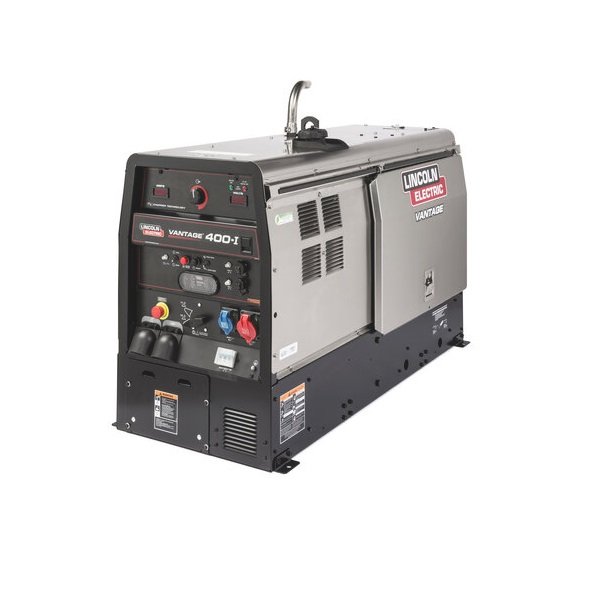

VANTAGE® 400

Description

The quiet, compact Vantage® 400 is an ideal choice for construction teams, pipe rig owners, and rental fleet managers. The machine features up to 500 amps with multi-process capabilities and plenty of auxiliary power to address job site needs. All powered by the popular 404 series Perkins industrial diesel engine for high reliability and low fuel consumption.

Features

• Compact Versatility – Offers up to 500 amps (IEC rated at 400 amps) of welding current to tackle numerous welding and carbon arc gouging applications. Select one of five basic process modes including CC-Stick, Downhill Pipe, DC Touch Start TIG®, CV-Wire, or Arc Gouging mode, which maximizes output for up to 3/8 in. (9.5 mm) carbon rods.
• Generator Output – Provides up to 17 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
• Patented Chopper® Technology – Experience premium arc performance with minimized spatter for stick or pipe welding as well as enhanced gouging performance that prevents the engine from stalling, resulting in smooth material removal.
• Reliable Operations – Engineered tough and field proven for ruggedness and durability to meet the most challenging job site needs and harshest environments.
• Industrial Diesel Engine – Powered by a 32.7 hp, naturally aspirated Perkins® diesel engine. Runs smooth and quiet while meeting EPA Tier 4i compliance.
• Innovative Service Access – Lockable and removable sliding access door to service the engine and internal components, battery drawer on front of machine for quick access, and top-mounted radiator cover provide convenient access to the machine.
